The garage door operator of the next generation
Faster. More secure. More intelligent. Brighter.
The SOMMER base+ is a class of its own. The garage door operator was re-developed from scratch. The intelligent carriage provides plenty of room for installing sophisticated accessories.
gear-spearing technologyfor long-lasting life-time and little wearout
galvanized, nickel plated chainno friction loss by revolving track, no need for retightening or oiling the track
energy saving: < 1 watt in standby mode
high self-locking force, active closing function and counter pressure on burglary attempt
One operator for all usesCan be used for sectional doors, ceiling sliding doors, swinging doors, up-and-over doors and roller door/side-sectional doors
All in one.
One box fits all.
With the SOMMER base+ you get a universal, ready-to-use complete package. The pre-assembled operator can easily be mounted on the ceiling or to the wall and is compatible with all sorts of garage doors.
Sectional doors with a maximum height of 2.500 mm and swinging doors with a height up to 2.750 mm can be opened with the track unit of the basic configuration. It is possible to open even higher doors with a rail extension, which is available as an accessory.
Additional features can be directly connected to the motor carriage without spiral cables
- connection for wicket door contact
- connection for safety contact strip OSE or 8k2
Connections ceiling controller
- pulse button
- 24 V warninglight (max. 25 W)
- 2- or 4-wire photocell
- socket for additional light (Lumi base+)
- socket for extension relay
- socket for AKKU-pack
A garage door operator like no other.
The SOMMER base+ comes with our most advanced controller technology, including optimized speed profiles and the possibility to enter exact force values. SOMMER base+ also has a self-learning force curve with continuous adjustment.
Intelligent controller technology
Automated learning processSelf-learning force curve with continual adjustment, e.g. summer/winter mode
Optimised speed profilesFor quick opening and secure closing
Operation compliant with standardsCan be customised with a force measurement device
Automatic calibration of the door operationThrough direct entry of measured operating forces
Preselectable door typesVia DIP switch
Active braking for moving doors
Gear-saving soft start/stop
SOMlink Service-InterfaceService info and versatile setting options
Automatic end position detection in DOOR CLOSE during learning-in processClosing pressure can be adapted to the individual structural conditions
Four radio channels with assigned functionsCH 1 = Pulse sequence
CH 2 = Partial opening / Lighting function
CH 3 = Defined OPEN
CH 3 = Defined CLOSE
Secure radio frequencywith 128 Bit AES encryption
Coded, copy-protected product software
Tested security and quality
Upholds the operating forces
Bi-directional SOMloq2 radio system
You can find all technical details as a PDF download
Plug and Play
The modular construction system allows you to upgrade your SOMMER base+ with a versatile collection of accessories. All accessories can be easily installed in the appropriate sockets, which are colored and labled.
Magnetic locking, that locks the engine in every position for attacking forces of up to 300 kg. The lock is blocking mechanically and improves the existing burglary protection.
For measuring temperature and humidity of the garage. The carriage will automatically open the door as much as it is needed and provides perfect air circulation. Once the ideal value is reached, the door will be closed again and the risk of molding decreases.

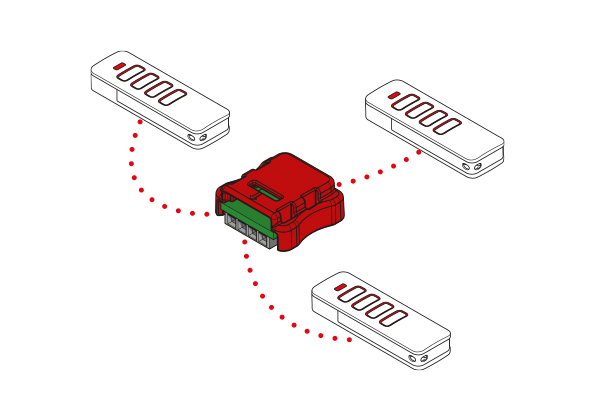

The Memo provides additional memory extension for up to 450 radio commands. If needed, saved data can be transferred to a new carriage.
Additional LED-lighting for the ceiling control. The additional lighting will be connected in parallel to the lighting of the carriage and can be switched on and off via radio control.
The buzzer offers two options alternatively in one product: If the sound sensor, which is integrated in the motor carriage, detects a burglary attempt the alarm buzzer plays a loud warning sound. The warn buzzer however makes a sound while closing.
The park position laser gives you an optical assistance to park your vehicle in the garage perfectly. The laser is active while the door is opening and stays active as long as defined in the duration settings.
Additional relay for additional switching of a garage or courtyard light.
Uses a passive infrared sensor to detect the invisible thermal radiation of moving bodies (humans/animals, etc.) and reacts to them. The operator lighting (additional lighting/relay) switches on automatically for safe movement when the garage is entered.

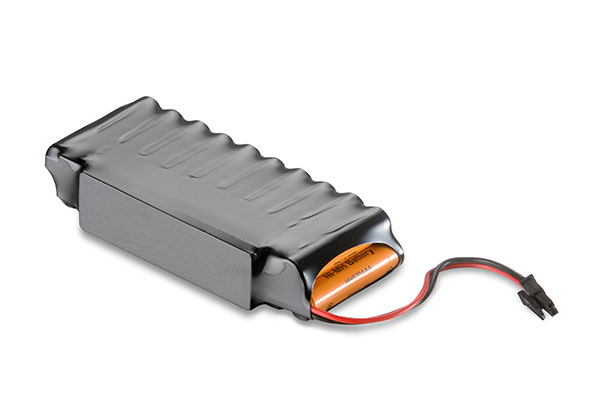

Assumes the power supply of the operator for > 5 door cycles in the event of a power failure.
Allows the connection of two corded pulse buttons for control of the door and one external lighting unit. The operating mode “Defined opening” and “Defined closing” is optional.

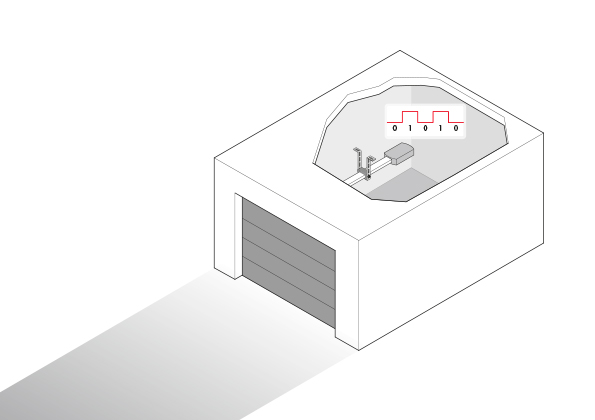

Transfers the door status (open/closed) to Smart Home systems. Optionally, a further external lighting unit can be operated.
For easier and more convenient installation of the tension springs on sectional doors. It is no longer necessary to lift the door yourself, making installation of the door even easier and quicker.
The LIFTer is only available for specialist dealers.
Long-standing experience (since 1980)
Made in Germany.
SOMMER and our subsidiaries and partners worldwide offer you everything from a single source. Our hardware and software is developed completely in-house and is renowned for the outstanding quality and innovative technology “Made in Germany”.
